RMPE1200 Hydrator MPE
Product Highlights
- High-performance casing hydration
- Automatic water level and temperature management
- Continuous recirculation with double filtration
- 2000 mm useful internal length
- Designed for the MPE1200 peeling line
Ask an Expert
Request Callback | Email
Product Overview

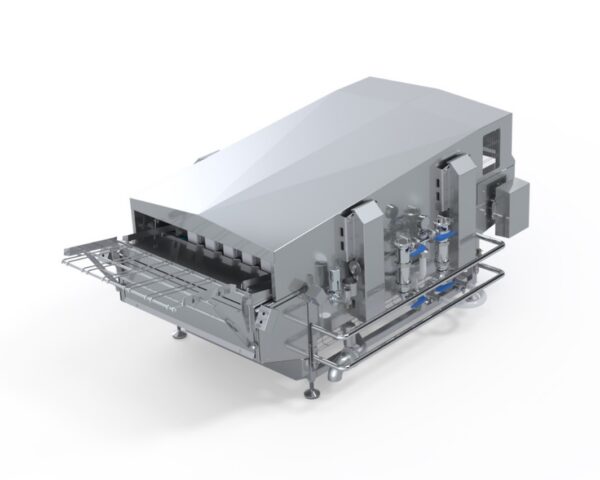

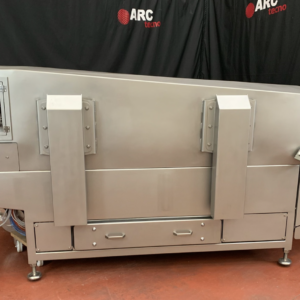

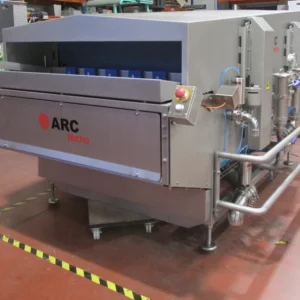

The ARCtecno RMPE1200 Hydrator is designed to work with the MPE1200 Automatic Peeler as part of a high-performance peeling line for cured sausage products. Before peeling, the RMPE1200 sprays water onto the cured sausage bars to soften the casing and support more efficient casing removal.
The hydrator has a useful internal length of 2000 mm, with capacity varying based on sausage caliber. Standard spacing allows for 22 pieces at 100 mm between centers or 14 pieces at 150 mm between centers.
Built for high-output production, the RMPE1200 features automatic water management, continuous water recirculation through a double filter, an automatic self-filling system with solenoid valves, and water level and temperature management. Together with the MPE1200 peeler, it helps processors prepare casings for consistent, efficient removal before slicing.
Downloads
Features
Designed for the MPE1200 peeling line
The RMPE1200 works with the MPE1200 Automatic Peeler to form a high-performance casing removal line.
Casing hydration before peeling
The hydrator sprays water onto cured sausage bars to soften casings before automatic peeling.
Automatic water management
The system manages water filling, level and temperature to support consistent hydration.
Continuous recirculation
Water is reused through continuous recirculation to support efficient operation.
Double filtration system
A double filter helps maintain water quality during recirculation.
Automatic self-filling
Solenoid valves support automatic water filling during operation.
2000 mm useful internal length
The hydrator provides a useful internal length of 2000 mm for product hydration.
Flexible product capacity
Capacity varies by product caliber, with standard spacing for 22 pieces at 100 mm centers or 14 pieces at 150 mm centers.
High-output production support
The RMPE1200 supports production of up to 1,300 pieces per hour when paired with the MPE1200 peeler.
Touch-screen control
The IP69K touch-screen control system supports operation in food production environments.
Specifications
| Specification | RMPE1200 Hydrator |
| Product type | Cured sausages / cylindrical pieces |
| Product diameter | 30 mm – 100 mm |
| Product length | 500 mm – 1200 mm; special measurements available |
| Production | Up to 1300 pieces/hour, depending on product type |
| Casing types | Cellulose, collagen, fibrous, Hukki |
| Useful internal length | 2000 mm |
| Standard spacing | 100 mm centers for 22 pieces; 150 mm centers for 14 pieces |
| Installation measurements | W3910 mm x L4600 mm x H1850 mm |
| Control system | Touch-screen IP69K |
