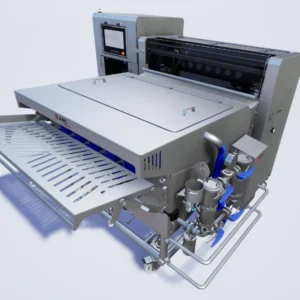

MPE1200 + RMPE High-Performance Peeling Line
Product Highlights
- High-performance automatic peeling
- Big hydrator integration
- Up to 1,300 pieces per hour
- Multi-caliber flexibility
- Robust hygienic stainless steel design
Ask an Expert
Request Callback | Email
Product Overview
The ARCtecno MPE1200 + RMPE High-Performance Peeling Line is designed to remove casings from cured sausage logs before slicing. The system combines the MPE1200 automatic peeler with the RMPE big hydrator, which softens casings before peeling to support fast, uniform casing removal.
Built for high-output production, the line can process up to 1,300 pieces per hour, depending on product type and casing. The peeler handles standard product lengths from 500 mm to 1200 mm, with special sizes available upon request, and supports product calibers from 35 mm to 110 mm.
The peeling machine uses two extraction areas: one to remove the tips with clips and another to extract the casings. With industrial PC control, servo-motorized mechanisms, stainless steel construction and touch-screen operation, the MPE1200 + RMPE is built for precise, reliable and hygienic performance in demanding food production environments.
Downloads
Features
High-performance peeling
The MPE1200 removes cellulose, collagen, fibrous and Hukki casings from cured sausage logs before slicing.
Big hydrator integration
The RMPE moisturizing module softens casings before peeling to support smoother, more consistent casing removal.
Up to 1,300 pieces per hour
The line is designed for high-volume production, depending on product type and casing.
Two extraction areas
One extraction area removes the tips with clips, while the second extracts the casing.
High-precision peeling system
The automated peeling system supports complete and uniform casing removal without damaging the product.
Servo-motorized performance
High-powered servomotors enable fast, precise and consistent peeling operation.
Digital touch-screen control
The touch-screen control panel allows operators to set and monitor machine parameters with precision.
Multi-caliber flexibility
A range of molds allows the machine to peel products from 35 mm to 110 mm in caliber.
Waste management options
Casing tips, clips and extracted casings can be transported to a collection point, container or optional shredder.
Robust hygienic construction
Stainless steel construction supports durability, sanitation and resistance to chemicals and high-pressure cleaning.
Specifications
| Specification | MPE1200 + RMPE High-Performance Peeling Line |
| Product type | Cured sausages / cylindrical pieces |
| Product calibers | 35 mm – 110 mm standard; mold system |
| Product length | 500 mm – 1200 mm; special sizes available |
| Production | Up to 1,300 pieces/hour, depending on product type |
| Casing types | Cellulose, collagen, fibrous, Hukki |
| Dimensions | W3915 mm x L4055 mm x H2020 mm |
| Control system | Touch-screen IP69K |
| Hydrator model | RMPE big hydrator |
| Peeler model | MPE1200 automatic peeler |
