PTP12C High-Performance Compact Peeler
Product Highlights
- Automatic peeling for plastic casings
- Patented dynamic unwinding system
- 800–1000 pieces per hour
- Multi-gauge adjustment without part changes
- Industrial PC touch-screen control
Ask an Expert
Request Callback | Email
Product Overview

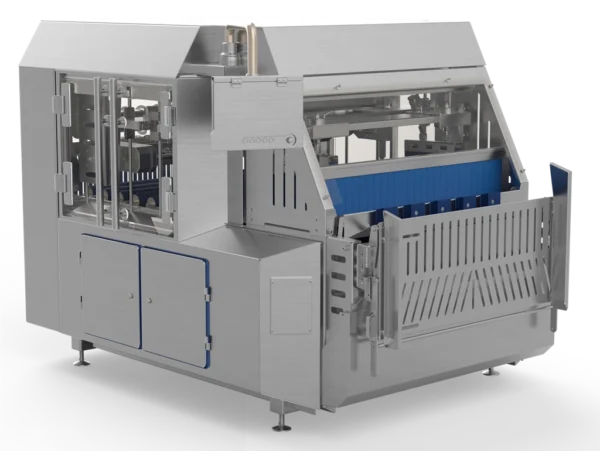

The ARCtecno PTP12C High-Performance Compact Peeler is designed to remove plastic casings from round, cylindrical products before slicing. Built for speed, efficiency and product quality, the PTP12C uses a patented dynamic unwinding system to remove plastic casing cleanly and consistently without damaging the product.
The machine performs multiple peeling steps in sequence: cutting the contour of the product tips, removing casing tips with clips, cutting along the product and unwinding the casing from the product. It supports manual or automated feeding at the machine infeed and can process 800 to 1000 pieces per hour.
Built entirely from stainless steel, the PTP12C is designed for reliability, hygiene and long service life in demanding food production environments. The machine adjusts to product diameters from 35 mm to 180 mm without changing parts, using crank and servo-motor adjustments.
Downloads
Features
Plastic casing removal
The PTP12C is designed to peel round products stuffed in plastic casing.
Patented dynamic unwinding system
The machine removes casing from the product using ARCtecno’s patented dynamic unwinding system.
Multi-step peeling process
The system cuts the product tip contour, removes casing tips with clips, cuts along the piece and removes the casing.
Manual or automated feeding
Products can be fed manually or through automated feeding at the machine infeed.
Multi-gauge flexibility
The machine handles product diameters from 35 mm to 180 mm without changing parts.
800–1000 pieces per hour
The PTP12C is designed for high-volume production of 800 to 1000 pieces per hour.
High-precision cutting
Stainless steel blades separate the casing without affecting product quality or integrity.
Industrial PC control
The machine uses an industrial PC with a 17-inch IP69K stainless steel display for control and monitoring.
Waste management options
Casing tips, clips and plastic casing can be transported to collection points, containers or optional shredders.
Robust hygienic construction
Stainless steel construction supports sanitation, durability and washdown requirements in food production environments.
Specifications
| Specification | PTP12C High-Performance Compact Peeler |
| Product type | Cylindrical pieces |
| Product sizes | 35 mm – 180 mm; consult for other sizes |
| Product length | 1000 mm – 1200 mm; consult for other sizes/models |
| Production | 800–1000 pieces/hour |
| Casing types | Plastic, fibrous |
| Dimensions | L3000 mm x W2000 mm x H1950 mm |
| Weight | 1800 kg |
| Control system | Industrial PC with 17″ IP69K stainless steel display |
| Quality certificates | CE, CSA, UL |
