PTP12 Special High-Performance Peeler
Product Highlights
- High-performance plastic casing removal
- Patented dynamic unwinding system
- 1,000–1,800 pieces per hour
- Multi-gauge adjustment without part changes
- Industrial PC touch-screen control
Ask an Expert
Request Callback | Email
Product Overview

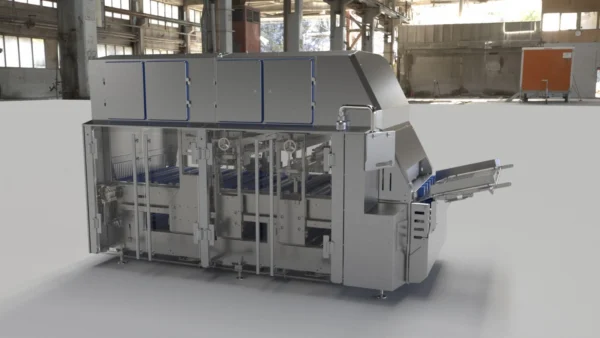

The ARCtecno PTP12 Special High-Performance Peeler is designed to remove plastic casings from round, cylindrical products before slicing. Built for high-volume sausage production, the PTP12 delivers fast, efficient and consistent casing removal while helping protect final product quality.
The system performs a multi-step peeling process that cuts the product tip contour, removes casing tips with clips, cuts along the piece and removes the casing using ARCtecno’s patented dynamic unwinding system. Casing tips, clips and plastic casing waste can be transported to collection points, containers or optional shredders to support a cleaner, more efficient process.
The PTP12 handles product diameters from 35 mm to 180 mm without changing parts, using crank and servo-motor adjustments. With industrial PC control, servo-motorized mechanisms and stainless steel construction, the system is built for precise, reliable and hygienic performance in demanding food production environments.
Downloads
Features
Plastic casing removal
The PTP12 is designed to peel round products stuffed in plastic casing.
Patented dynamic unwinding system
The machine removes casing from the product using ARCtecno’s patented dynamic unwinding system.
Multi-step peeling process
The system cuts the product tip contour, removes casing tips with clips, cuts along the piece and removes the casing.
Manual or automated feeding
Products can be fed manually or through automated feeding at the machine infeed.
Multi-gauge flexibility
The machine handles product diameters from 35 mm to 180 mm without changing parts.
1,000–1,800 pieces per hour
The PTP12 is designed for high-volume production of 1000 to 1800 pieces per hour.
High-precision cutting
Stainless steel blades separate the casing without affecting product quality or integrity.
Industrial PC control
The machine uses an industrial PC with a 17-inch IP69K stainless steel display for control and monitoring.
Waste management options
Casing tips, clips and plastic casing can be transported to collection points, containers or optional shredders.
Robust hygienic construction
Stainless steel construction supports sanitation, durability and washdown requirements in food production environments.
Specifications
| Specification | PTP12 Special High-Performance Peeler |
| Product type | Cylindrical pieces |
| Product sizes | 35 mm – 180 mm; consult for other sizes |
| Product length | 1000 mm – 1200 mm; consult for other sizes/models |
| Production | 1000–1800 pieces/hour |
| Casing types | Plastic, fibrous |
| Dimensions | L4990 mm x W2195 mm x H2585 mm |
| Weight | 4000 kg |
| Control system | Industrial PC with 17″ IP69K stainless steel display |
| Quality certificates | CE, CSA, UL |
