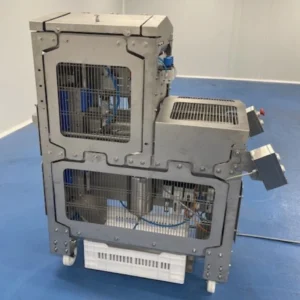

TPE1200 Semi-Automatic Peeler
Product Highlights
- Compact, portable design
- Built-in cap cutting and casing slitting
- Uniform casing prep before hand removal
- Reduced operator strain
- Easy cleaning and positioning
Ask an Expert
Request Callback | Email
Product Overview

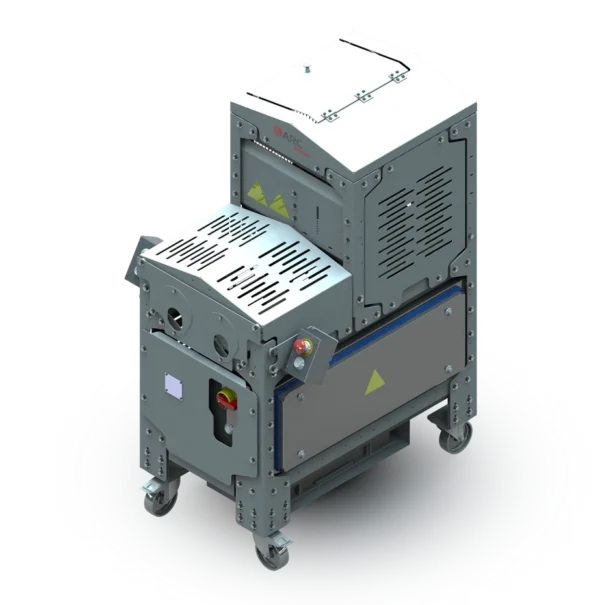

The ARCtecno TPE1200 Semi-Automatic Peeler is a compact, portable peeling solution designed to assist with casing removal from cured sausage logs. Built for processors handling cylindrical pieces, the TPE1200 helps remove clipped ends and prepare casings for quick, efficient hand removal before slicing.
In one simple operation, the machine cuts the end cap, inflates the casing and slits it with a linear knife, making the casing easier to remove by hand. This supports more uniform results while reducing operator fatigue and the physical strain of handling sausage logs.
Designed for simple operation and flexible plant use, the TPE1200 features push-button controls, double push-button start for operator safety, easy access to machine components and wheels for convenient positioning. Built with robust, hygienic materials, the machine is easy to clean and resistant to chemicals and high-pressure washdown environments.
Downloads
Features
Built-In Cap Cutting
The adjustable end cap-cutting system helps remove tips with clips from cured sausage logs.

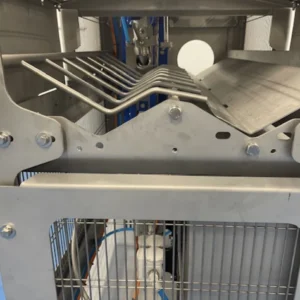

Casing Inflation and Slitting
The machine inflates the casing and uses a linear cutter to slit it, making the casing easier to remove by hand.
Compact, Portable Design
The TPE1200 is designed as a compact unit with wheels for easy movement and positioning within the production area.
Safer, Easier Operation
Double push-button start supports operator safety, while the machine can be used by one or two operators depending on production flow.
Reduced Operator Strain
By assisting with cap removal and casing prep, the machine helps reduce the physical stress and risk associated with manual handling.
Uniform Results
The peeling prep process helps support more consistent casing removal from product to product.
No External Tools Required
The machine performs cap cutting, casing inflation and casing slitting without requiring separate external tools.
Easy Access
Operators have access to all machine parts for operation, cleaning and maintenance.
Collector Box
An integrated collector box captures end caps and clips during operation.
Hygienic Construction
The TPE1200 is built using robust, hygienic materials for food industry use.
Easy Cleaning
The machine is easy to clean and resistant to chemicals and high-pressure cleaning environments.
Specifications
| Specification | TPE1200 Semi-Automatic Peeler |
| Product type | Cured sausages / cylindrical pieces |
| Product calibers | 40 mm – 110 mm |
| Product length | Minimum 700 mm – 1200 mm |
| Production | Around 6–8 pieces/minute, depending on product type |
| Casing types | Cellulose, collagen, fibrous, Hukki |
| Dimensions | W810 mm x L1912 mm x H1514 mm |
| Control system | Push-button IP68 |
| Power requirements | 220V / I / 50–60 Hz |
| Compressed air requirements | 6 bar |
| Quality certificates | CE, CSA, UL |
